Technical features of the coating
| Coating colour | Hardness | Elastic modulus E | Oxidation temp. | Coeff. of friction on 100Cr6 | Deposition temp. | Typical thickness |
|---|---|---|---|---|---|---|
| Black Grey | 2000 ± 50 HV | 320 ± 20 GPa | 400°C | 0,15 | 250°C | 1-3 μm |
It is part of the DLC (Diamond Like Carbon) coating family.
It is made with electric arc technology and is composed of a Chromium Nitride adhesion layer and an amorphous Carbon layer.
The main features of this coating are a low coefficient of friction and a high chemical inertness, combined with good hardness values and an excellent adhesion to substrates.
It is produced at a temperature of 250 °C, which considerably extends its scope of application.

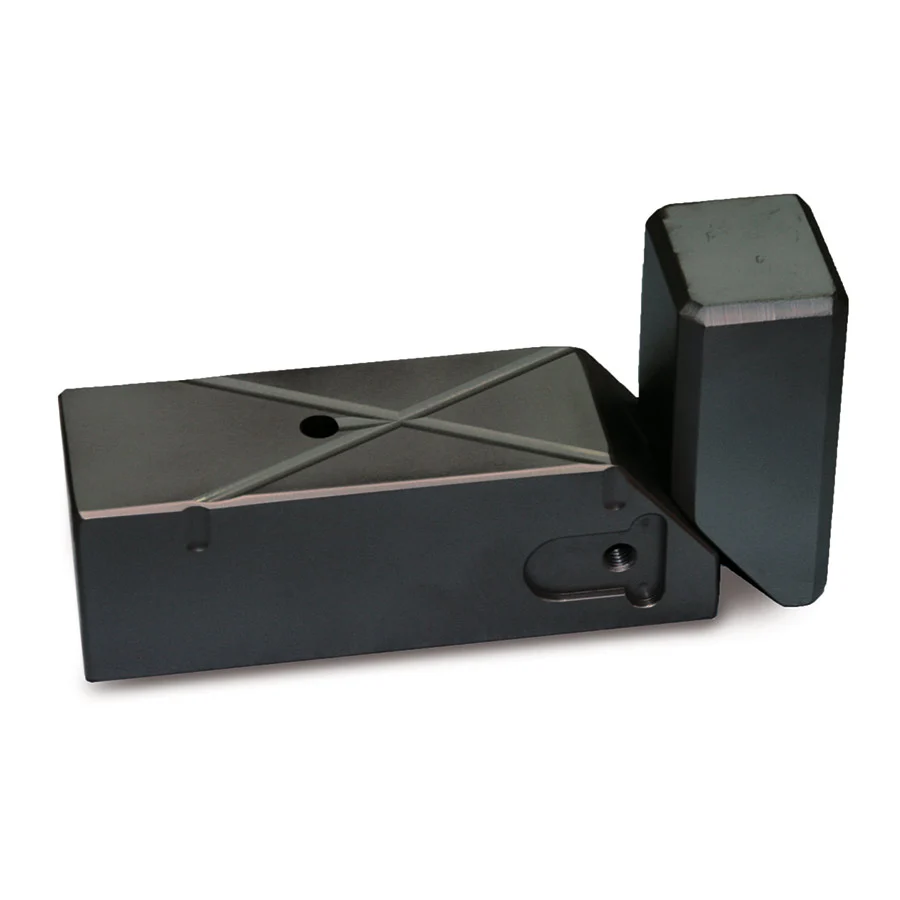

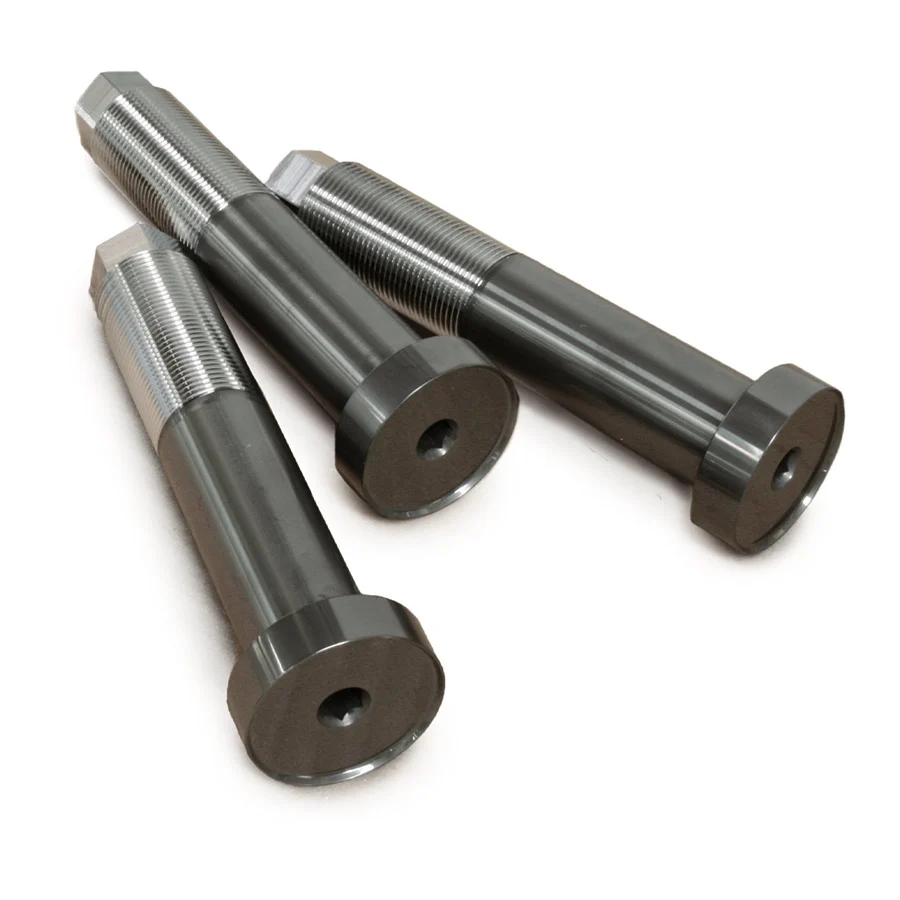

It is frequently used to coat various types of mechanical parts, such as, for example, mould ejectors, trolleys and mould centring devices, camshafts, valves and other, where the reduction of friction is essential.
SHEARING AND FORMING DIESIn the shearing and forming of light alloys and pasty materials in general.
It is part of the DLC (Diamond Like Carbon) coating family.
It is made with electric arc technology and is composed of a Chromium Nitride adhesion layer and an amorphous Carbon layer.
The main features of this coating are a low coefficient of friction and a high chemical inertness, combined with good hardness values and an excellent adhesion to substrates.
It is produced at a temperature of 250 °C, which considerably extends its scope of application.
It is frequently used to coat various types of mechanical parts, such as, for example, mould ejectors, trolleys and mould centring devices, camshafts, valves and other, where the reduction of friction is essential.
SHEARING AND FORMING DIESIn the shearing and forming of light alloys and pasty materials in general.
